Plastic Modular Range

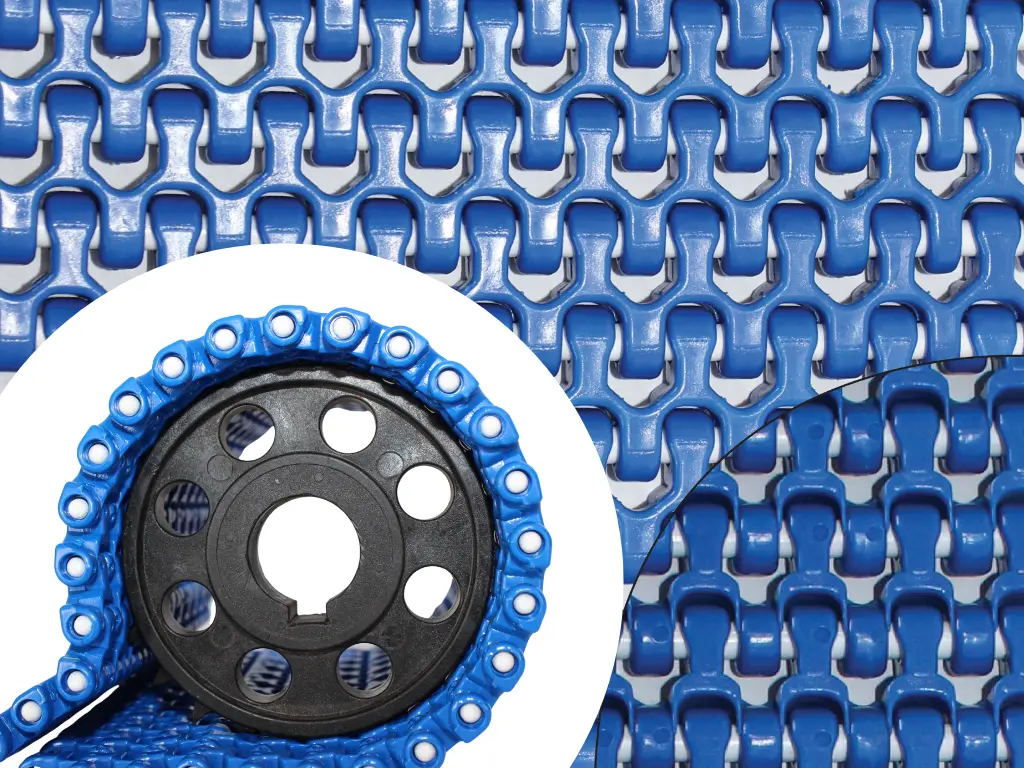

MW12 Flush Grid Plastic Modular Belt
(12mm Pitch)
Straight Running Applications
- Interterlocking belt surface provides continuous product support and allows for accumulative applications without scratching or damaging the product.
- Bi-directional, FDA approved material.
- Vibration-free belt movement minimizes product shifting and damage.
- Snap-in rods for easy assembly and repair.
- Countersunk rod heads provide smooth even edges.
- 22% open surface area for superior air / liquid flow.
- Offers tight transfers for the conveying of small products and can go around a 25mm diameter transfer roller.

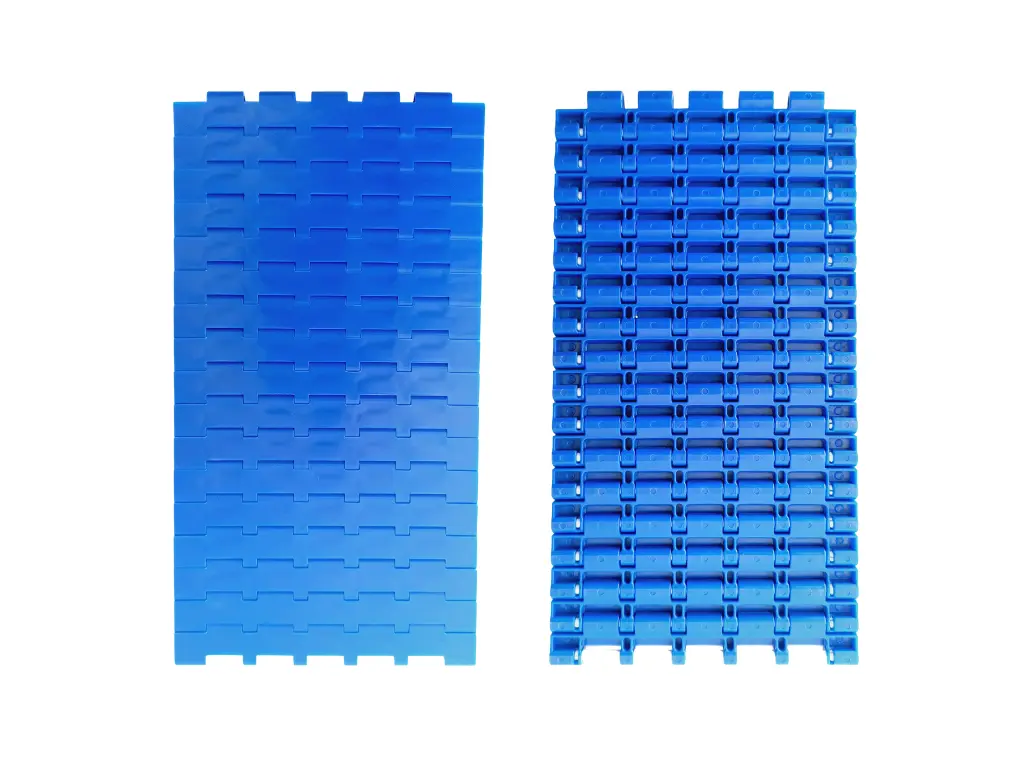

MW16 Solid Top Plastic Modular Belt
(25mm Pitch, with 25mm Belt Width Increments)
- Strong, durable design is ideal for material handling applications, and safe for direct contact with raw produce as material is FDA approved.
- 0% open area for air/liquid flow.
- Snap-in rods for easy assembly and frustration free repair.
- Countersunk rod heads provide smooth even edges.
- Non-metal components eliminate potential product contamination and allow for metal detector applications.
- Specially designed tooth of the sprocket ensures long production life and effective engagement between belt and sprocket.
- All ranges are interchangeable and run on the same sprockets

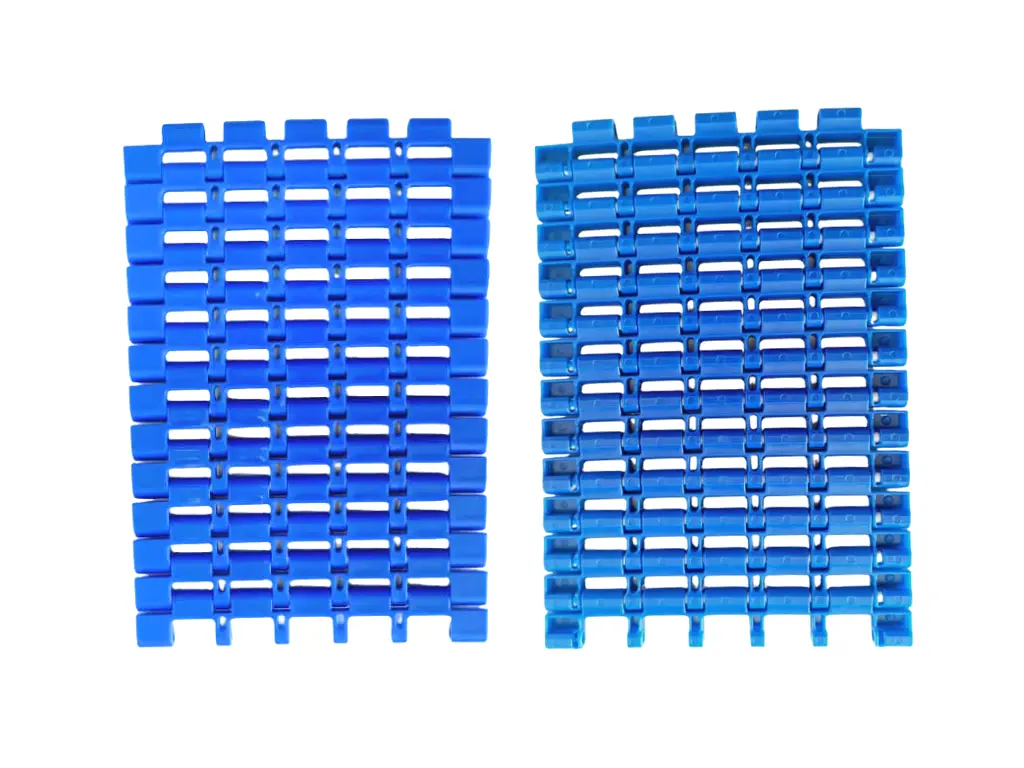

MW16 Flush Grid Plastic Modular Belt
(25mm Pitch, with 25mm Belt Width Increments)
- 40% Open area for maximum air or water flow.
- Perfect for cooling applications, no chance of hot product condensation build up on the underside.
- Exposed pin design for easy clean along with debris removal between module and pin.
- Open area of belt result in easy cleaning on both the top and bottom of the belt.
- Strong, durable design is ideal for material handling applications, and safe for direct contact with raw produce as material is FDA approved.
- Snap in rods for easy assembly and frustration free repair.
- All ranges are interchangeable and run on the same sprockets

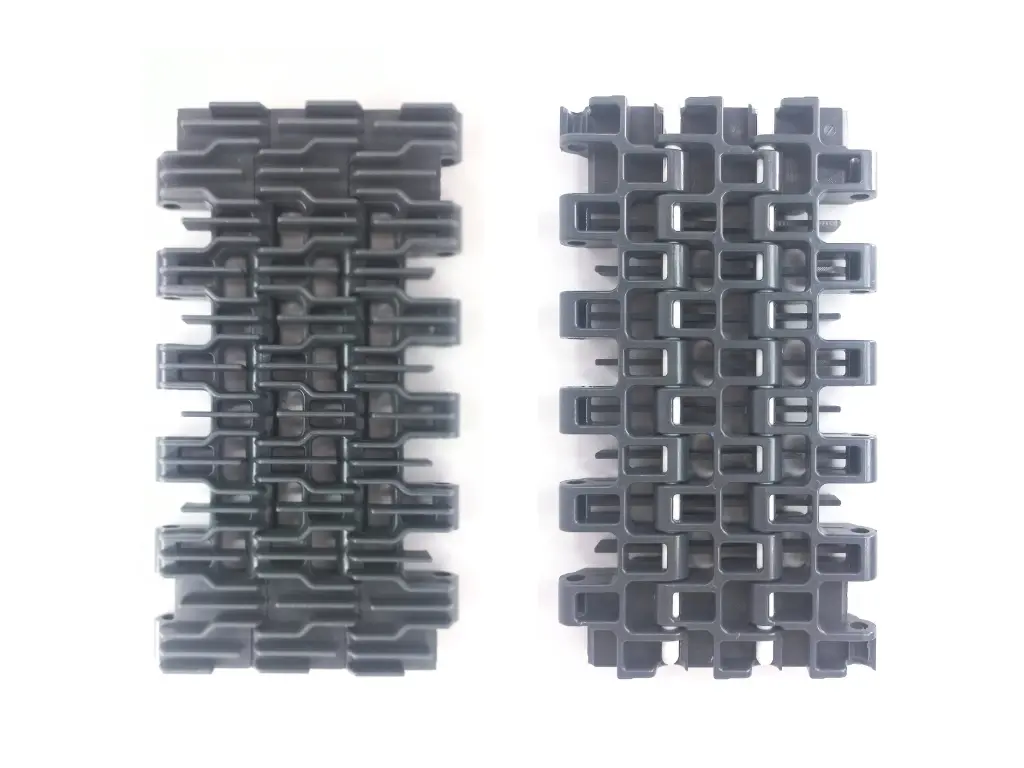

MW16 Raised Rib Plastic Modular Belt
(25mm Pitch, with 25mm Belt Width Increments)
- Strong, durable design is ideal for material handling applications, and safe for direct contact with raw produce as material is FDA approved.
- The design allows for transfer of small products and prevents products from tipping over.
- Moulded in Flex PU for high friction inserts, catering for incline & decline conveyering applications.
- Snap in rods for easy assembly and frustration free repair.
- Non-metal components eliminate potential product contamination and allow for metal detector applications.
- Exposed pin design for easy clean along with debris removal between module and pin.
- All ranges are interchangeable and run on the same sprockets.

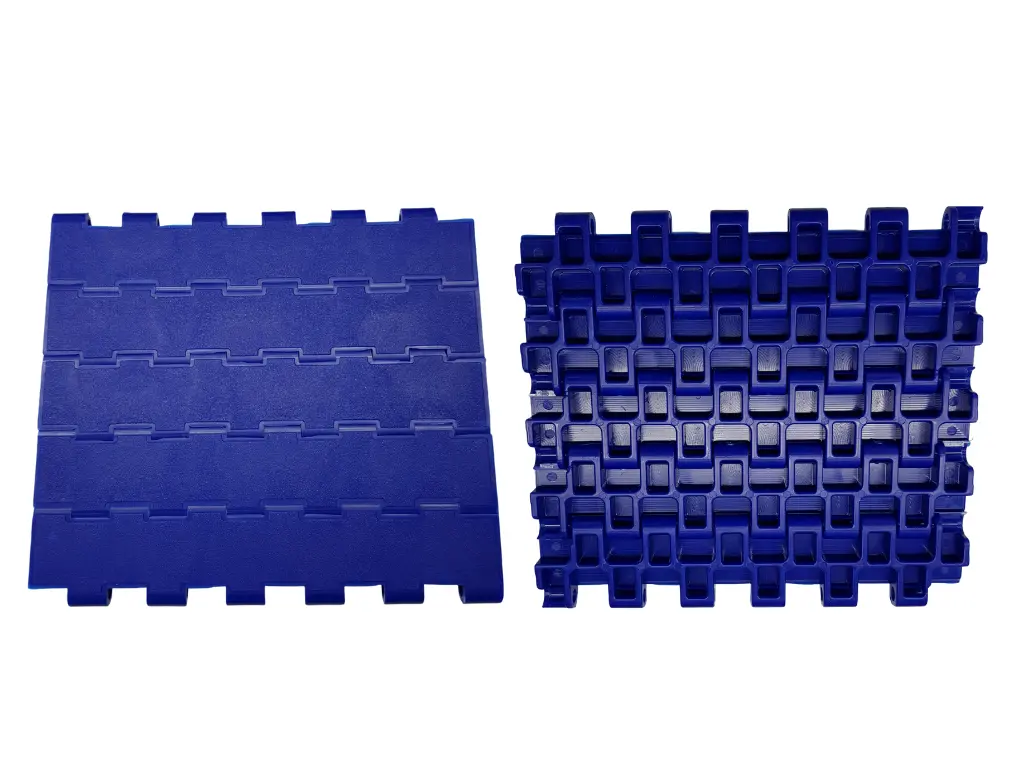

MW25 Solid Top Plastic Modular Belt
(25mm Pitch, with 25mm Belt Width Increments)
- Strong, durable design is ideal for material handling applications, and safe for direct contact with raw produce as material is FDA approved.
- 0% open area for air/liquid flow.
- Snap-in rods for easy assembly and frustration free repair.
- Countersunk rod heads provide smooth even edges.
- Non-metal components eliminate potential product contamination and allow for metal detector applications.
- Specially designed tooth of the sprocket ensures long production life and effective engagement between belt and sprocket.
- All ranges are interchangeable and run on the same sprockets

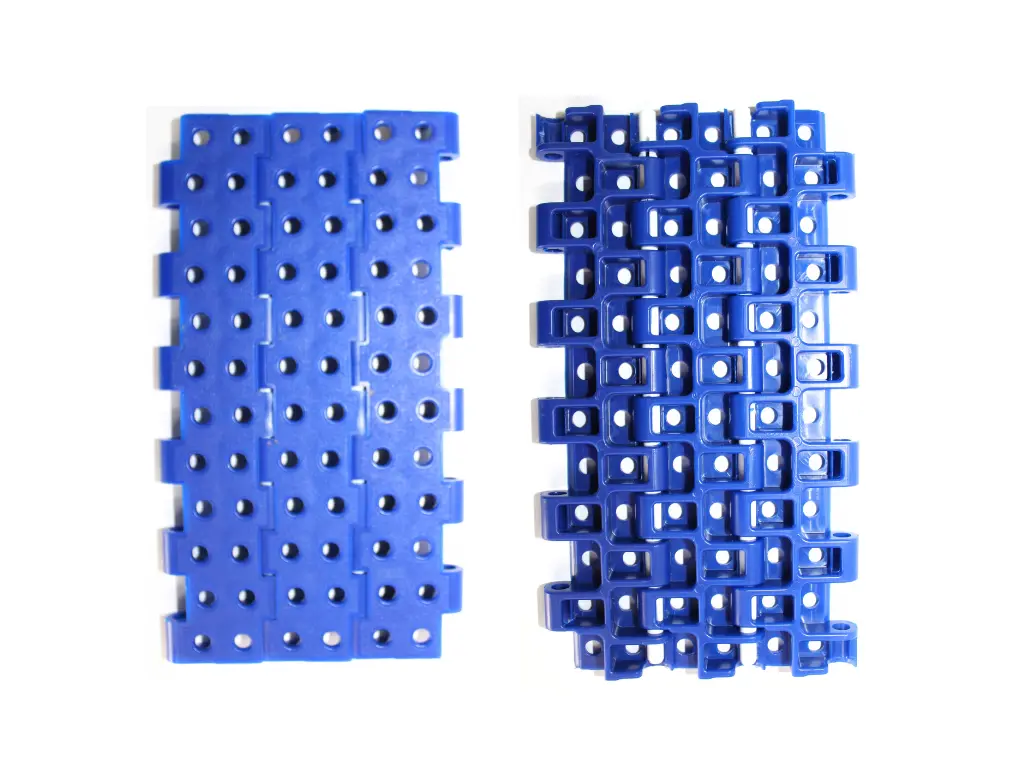

MW25 Vent Top Plastic Modular Belt
(25mm Pitch, with 25mm Belt Width Increments)
- 18% Open area for limited air or water flow
- 5mm Diameter holes are perfect for mounting custom attachments for unique applications.
- Strong, durable design is ideal for material handling applications, and safe for direct contact with raw produce as material is FDA approved.
- Snap in rods for easy assembly and frustration free repair.
- Can be used in metal detector and x-ray detector applications.
- Full range of accessories (flights, side guards, high friction inserts).
- All ranges are interchangeable and run on the same sprockets.

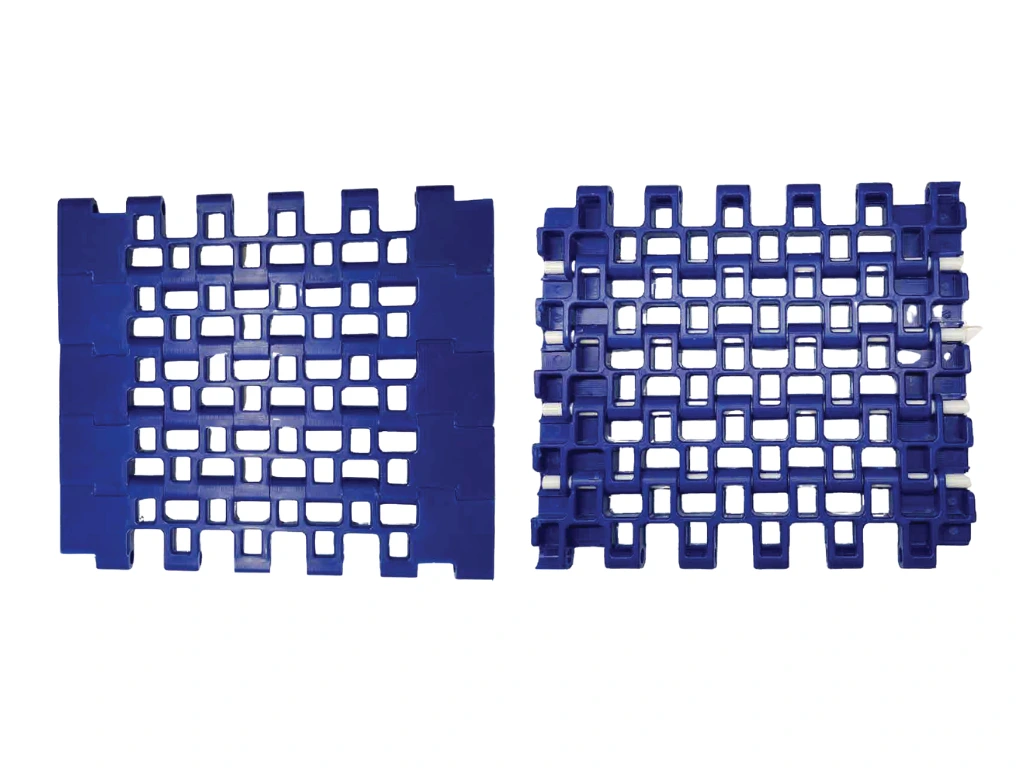

MW25 Flush Grid Plastic Modular Belt
(25mm Pitch, with 25mm Belt Width Increments)
- 40% Open area for maximum air or water flow.
- Perfect for cooling applications, no chance of hot product condensation build up on the underside.
- Exposed pin design for easy clean along with debris removal between module and pin.
- Open area of belt result in easy cleaning on both the top and bottom of the belt.
- Strong, durable design is ideal for material handling applications, and safe for direct contact with raw produce as material is FDA approved.
- Snap in rods for easy assembly and frustration free repair.
- All ranges are interchangeable and run on the same sprockets

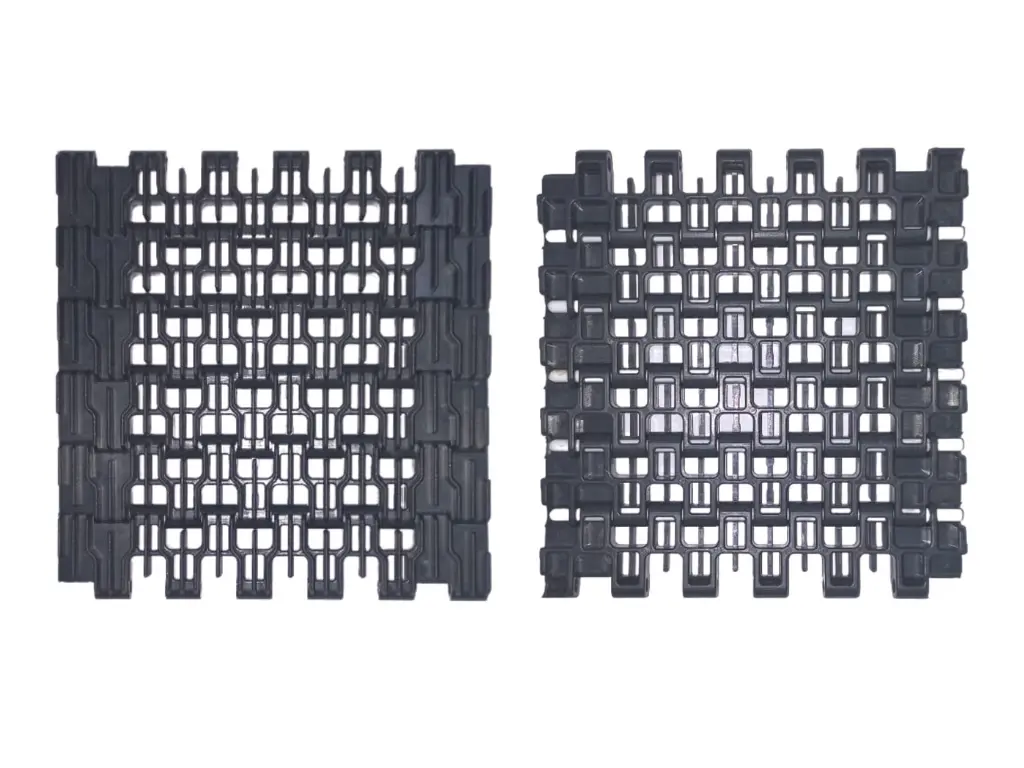

MW25 Raised Rib Plastic Modular Belt
(25mm Pitch, with 25mm Belt Width Increments)
- Strong, durable design is ideal for material handling applications, and safe for direct contact with raw produce as material is FDA approved.
- The design allows for transfer of small products and prevents products from tipping over.
- Moulded in Flex PU for high friction inserts, catering for incline & decline conveyering applications.
- Snap in rods for easy assembly and frustration free repair.
- Non-metal components eliminate potential product contamination and allow for metal detector applications.
- Exposed pin design for easy clean along with debris removal between module and pin.
- All ranges are interchangeable and run on the same sprockets.

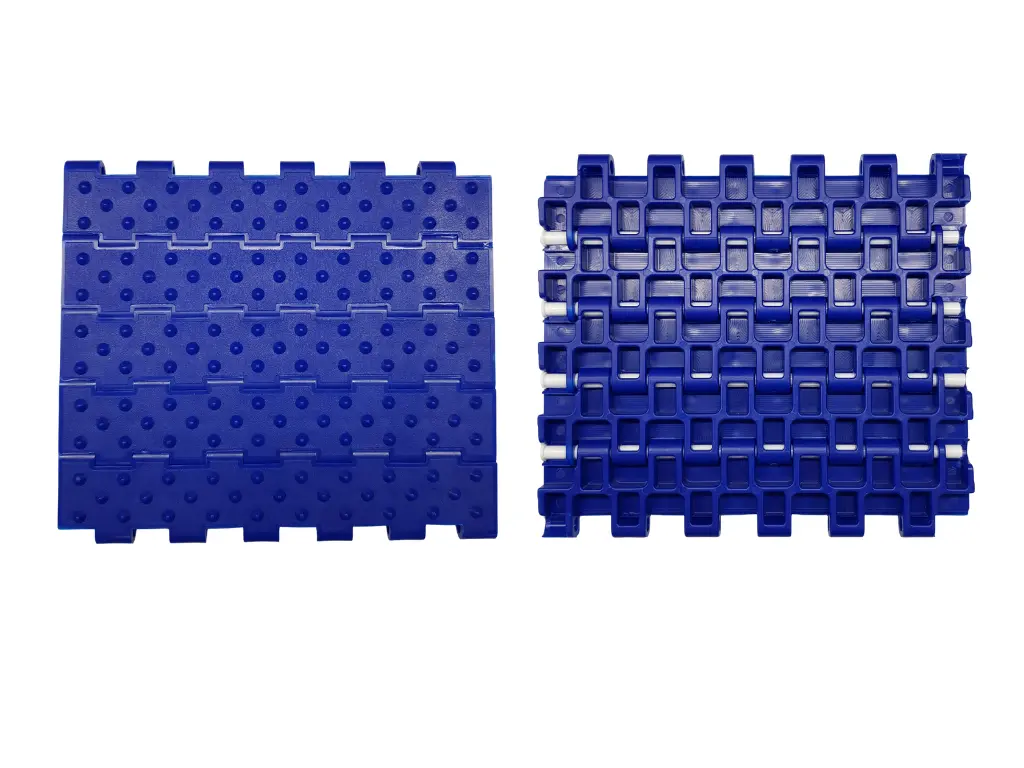

MW25 Spike Top Plastic Modular Belt
(25mm Pitch, with 25mm Belt Width Increments)
- Spike Top design creates limited contact between belt and product, it also creates a traction on the top surface for soft products.
- When moulded an FDA PU can be used as high friction insert for incline and decline applications.
- Easy to clean design as all edges are rounded.
- Strong, durable design is ideal for material handling applications, and safe for direct contact with raw produce as material is FDA approved.
- Snap in rods for easy assembly and frustration free repair.
- All ranges are interchangeable and run on the same sprockets.

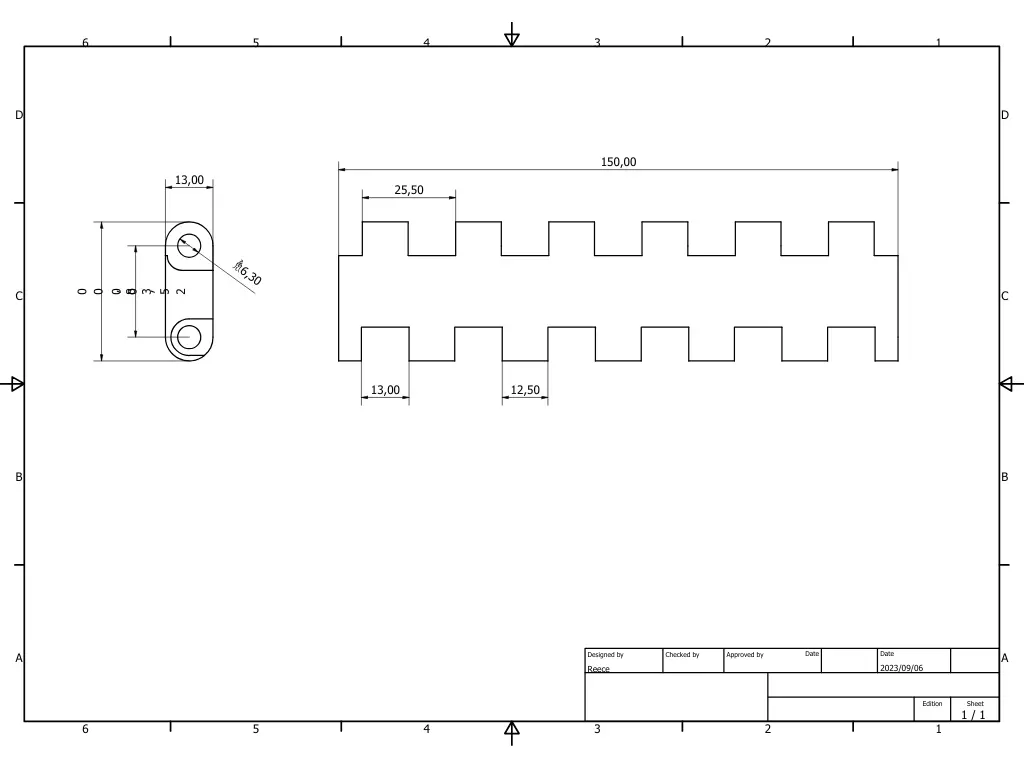

MW25 Heavy Duty Solid Top Plastic Modular Belt
- Heavy Duty, 25mm pitch design is ideal for container, package and corrugated board processing.
- Plastic material used carries a full FDA approval and is fully approved for food processing. (Certificates available on request).
- 0% open area for air / liquid flow.
- Countersunk snap-in rods for easy assembly and repair also creating a smooth even edge.
- Officially one of the strongest belts on offer, that is made in South Africa.
- Non-metal components eliminate potential contamination and allows for metal detector applications.
- Tooth profile of sprocket ensures exceptional life span and effective engagement between belt and sprocket.

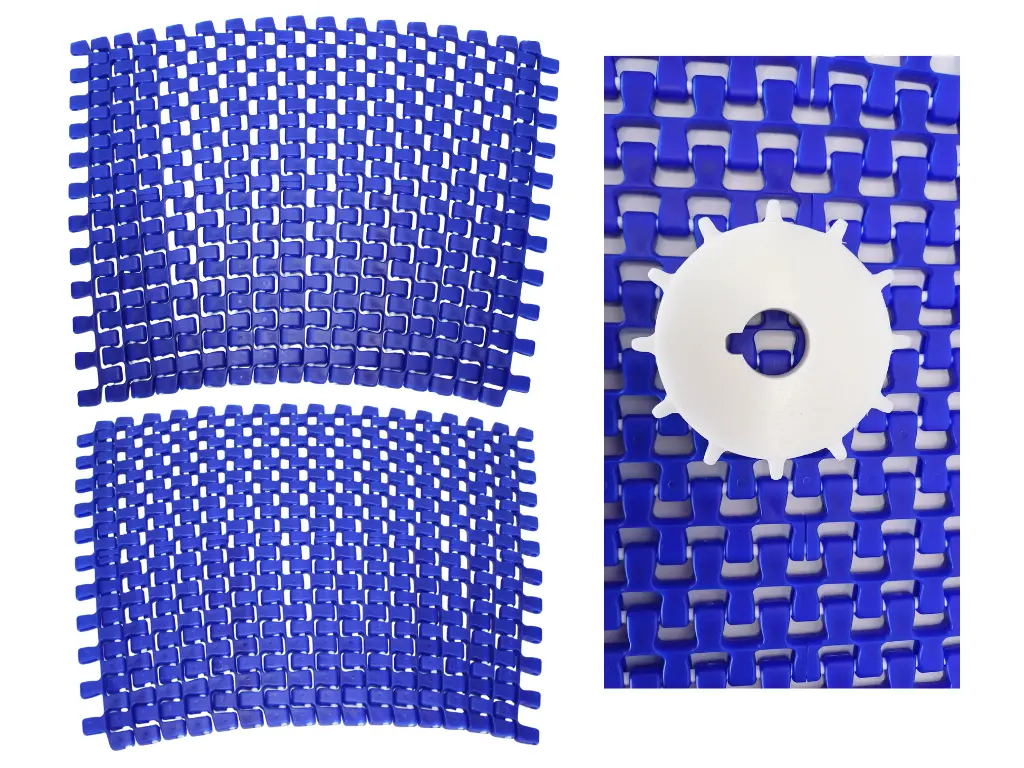

MW25 Radius Light Plastic Modular Belt
- Interlocking belt surface provides continuous product support and permits accumulation without scratching or marking.
- Bi-Directional, FDA approved material belt.
- Vibration free belt movement minimizes product shifting and damage.
- Snap in rods for easy assembly and repair.
- Countersunk rod heads provide smooth even edges.
- 32% open surface area for superior air/liquid flow.
- Non-stick surface reduces and eliminates frost, ice or other environmental build-up. This applies to PE material.
- The belt is also designed to take an inside turning radius equal to 2.5 times the nominal belt width for belts up to 600mm wide, 3 times for belts over 600mm wide

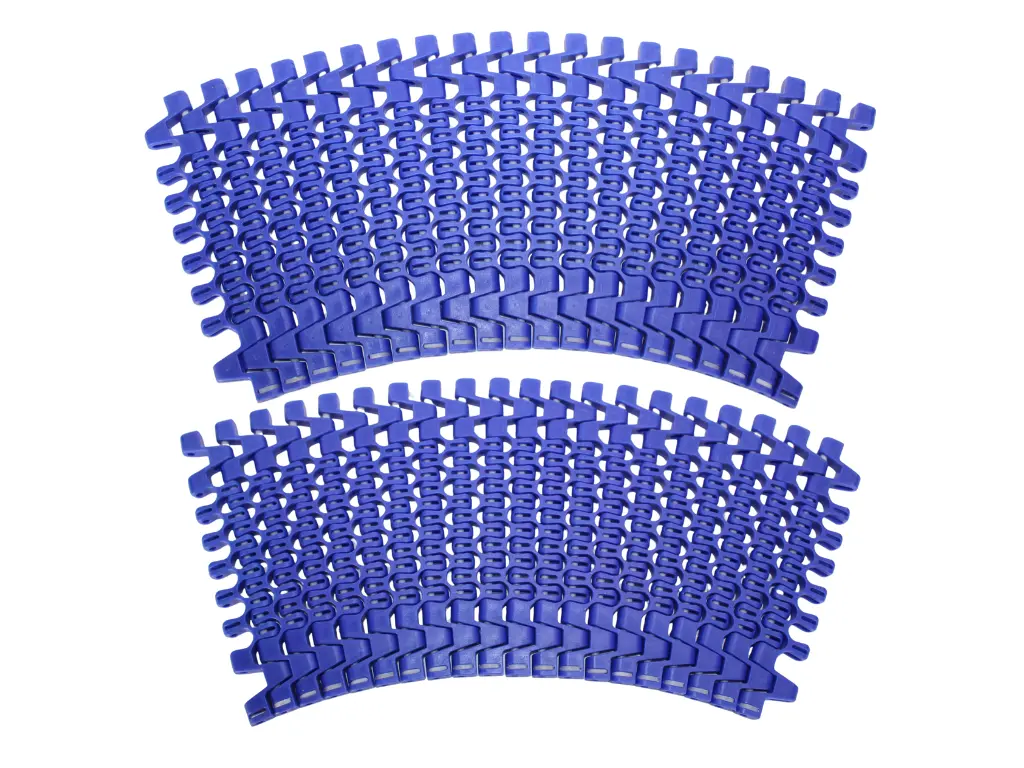

MW25 Radius Premium Plastic Modular Belt
(25mm Pitch, with 20mm Belt Width Increments)- Straight or Radius Application
- Open belt surface with a smooth top which provides continuous product support and permits accumulation without scratching or marking the product being conveyed.
- Bi-Directional, ideal choice for medium weight products.
- Vibration free belt movement minimizes product shifting and damage along with prolonged belt life.
- Locking clips for easy assembly and easily repairs when needed.
- 52% open surface area for superior air/liquid flow.
- Non-stick surface reduces and eliminates frost, ice or other environmental buildup. (This applies to PE material.)
- The belt is also designed to take an inside turning radius equal to 2.2 times the nominal belt width for belts up to 600mm wide, 2.5 times for belts over 600mm wide.
- Applications: Radius conveyors, spiral coolers for dairy, snacks and seafood production.

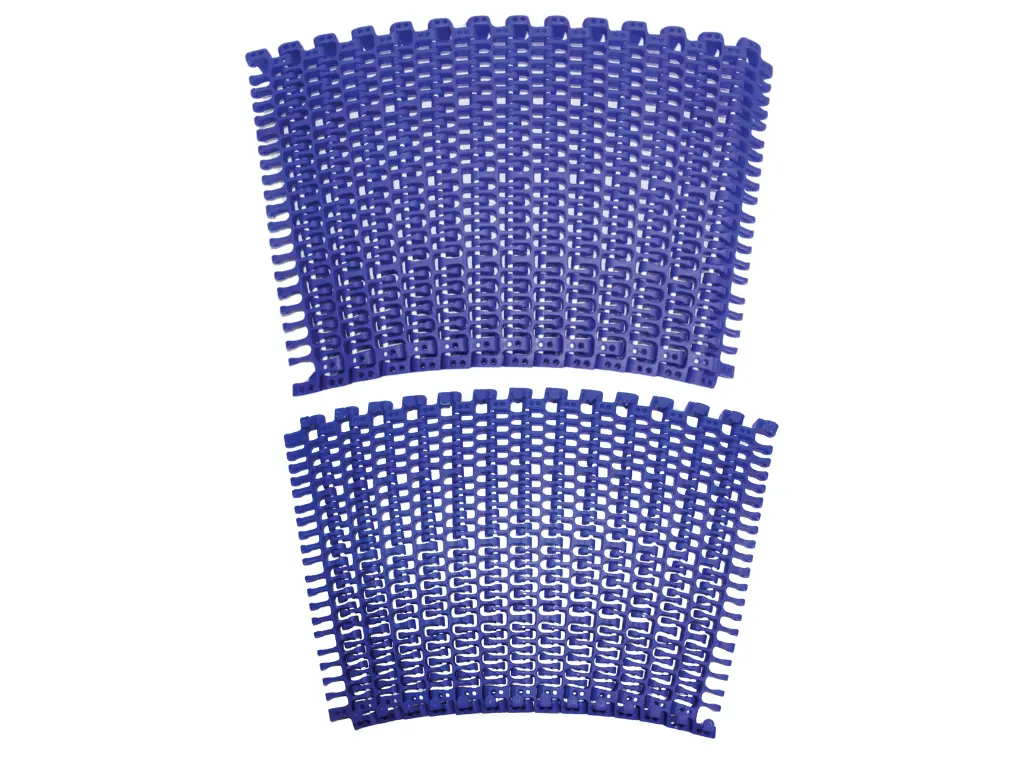

MW40 Radius Plastic Modular Belt
(38.1 mm Pitch)
- Straight or Radius Applications.
- Interlocking belt surface provides continuous product support and permits accumulation without scratching or marking. Limited contact between belt and product.
- Bi-Directional, FDA material approved belt.
- Vibration free belt movement minimizes product shifting and damage.
- Snap in rods for easy assembly and repair.
- Countersunk rod heads provide smooth even edges.
- Tab configuration of radius belts permits cost effective conveyer construction.
- 58 % open surface area for superior air/liquid flow.
- Non-stick surface reduces and/or eliminates frost, ice or other environmental build up. This applies to PE material.
- The belt is also designed to take an inside turning radius equal to 2.5 times the belt width

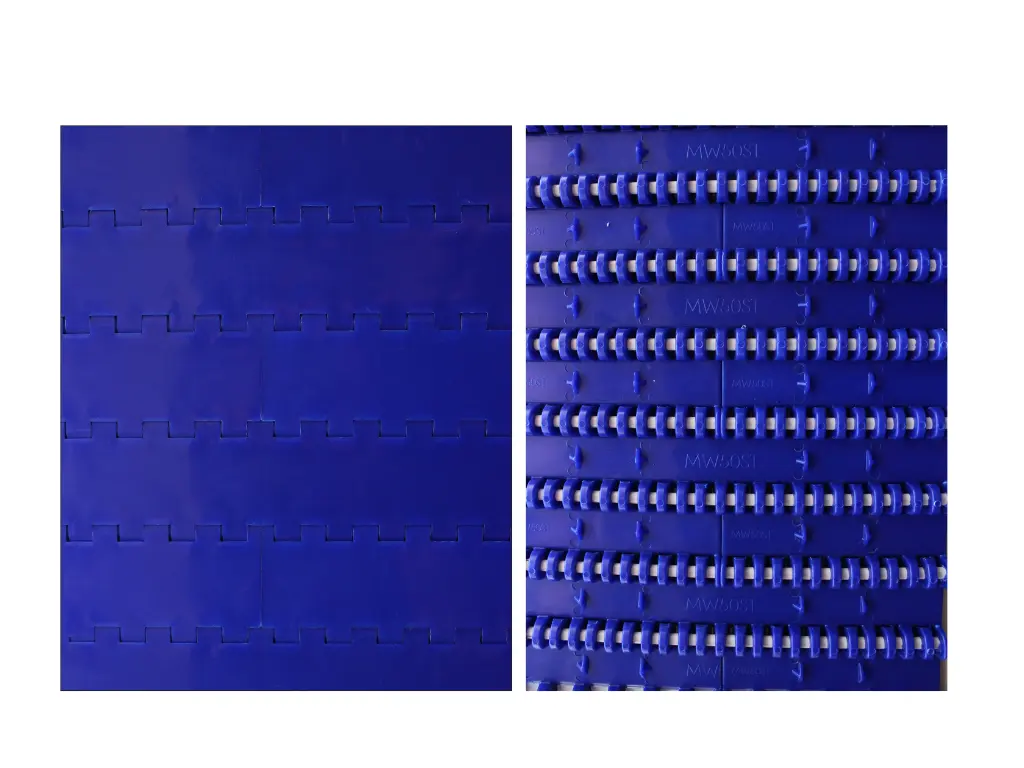

MW50 Solid Top Plastic Modular Belt
Straight running applications
- Interlocking belt surface provides continuous product support without scratching or marking the belt or product.
- Cam-link design hinges expose more hinge and rod area as the belt goes around the sprockets. This feature allows for effective cleaning processes. Please inquire about our unique self cleaning spray system. Ensuring 30% faster cleaning autonomously.
- Bi-Directional, FDA material approved belt that is easy to maintain.
- Vibration free belt movement minimizes product shifting and damage.
- Countersunk snap in rods for easy assembly and repair also creating a smooth even edge.
- Non-stick surface reduces and/or eliminates frost, ice or other environmental buildup. This applies to our custom blend PE material.

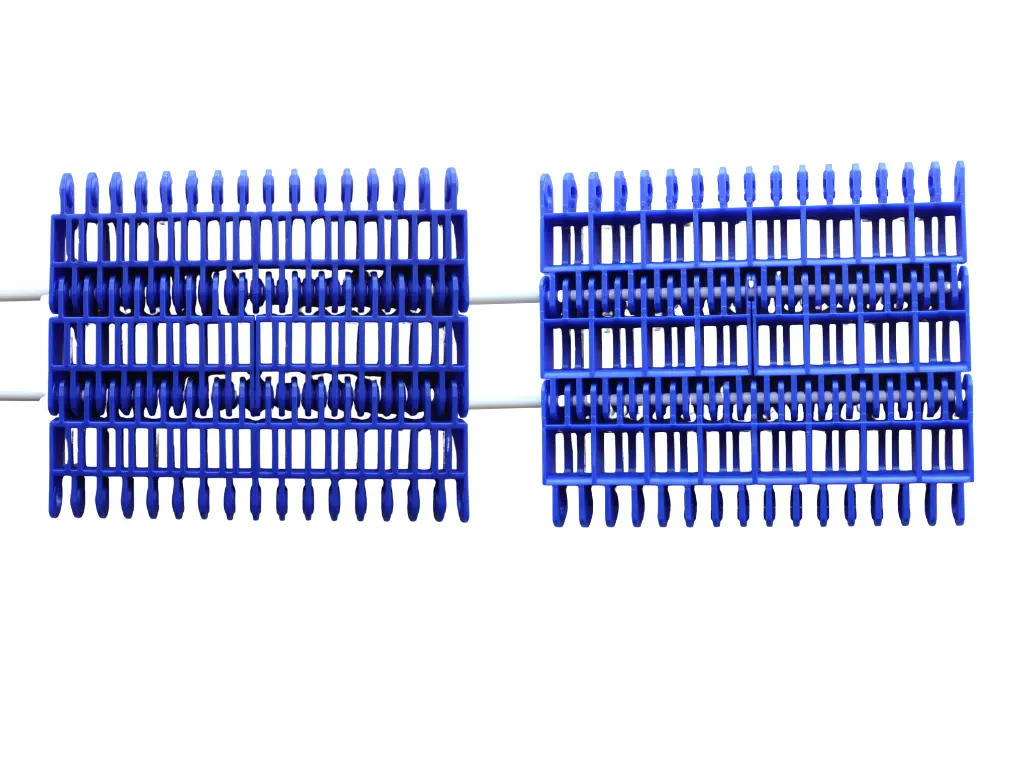

MW50 Fluid Flow Plastic Modular Belt
(50mm Pitch)
- Tight, close rib opening design provides 35% open area for air/liquid flow.
- Increased lateral support permits tip free movement and prevents fall through of objects as small as nuts and cranberries.
- Wide tooth sprocket design provides excellent distribution of tension across the belt width.
- Vibration free belt movement minimizes product shifting and damage.
- Countersunk rod heads provide smooth even edges.
- Non-metal components eliminate potential product contamination and allow for metal detector applications.
- Can be supplied with custom attachments

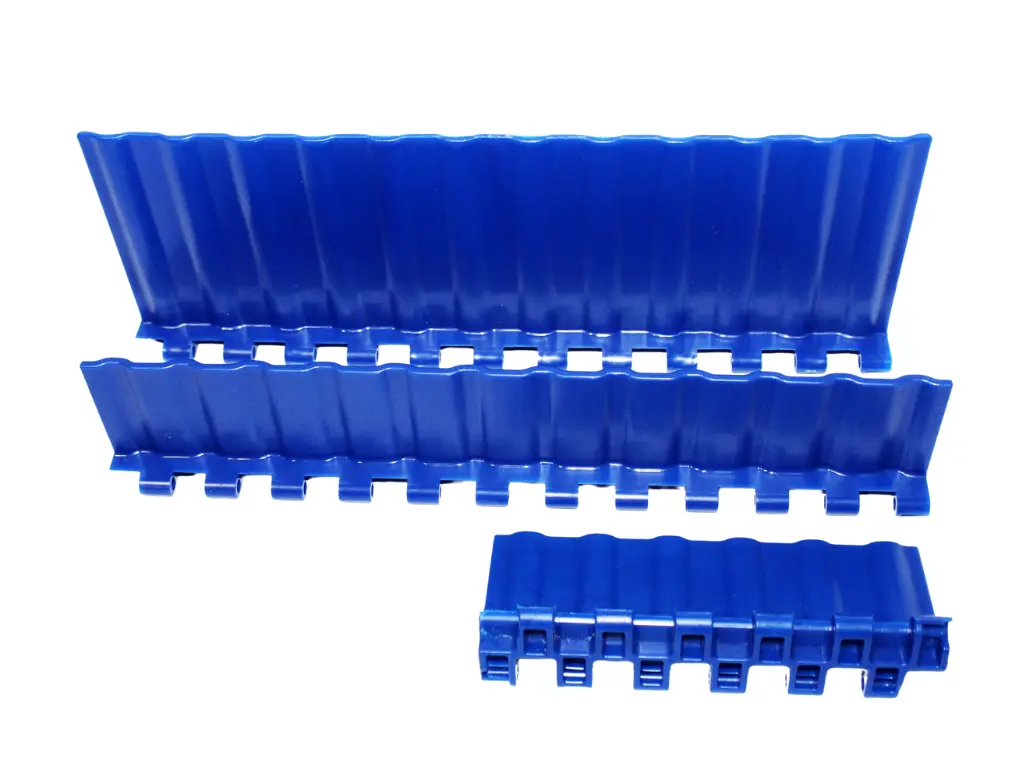

Flights MW25 Plastic Modular Belt
(25mm Pitch)
- 25 mm pitch design for smooth, stable product handling.
- Available in multiple widths and configurations to suit any conveyor layout.
- High strength and load capacity for demanding applications.
- Open, hygienic design for easy cleaning and fast drainage.
- Excellent wear and chemical resistance for long service life.
- Modular construction allows quick, tool-free repair and maintenance.

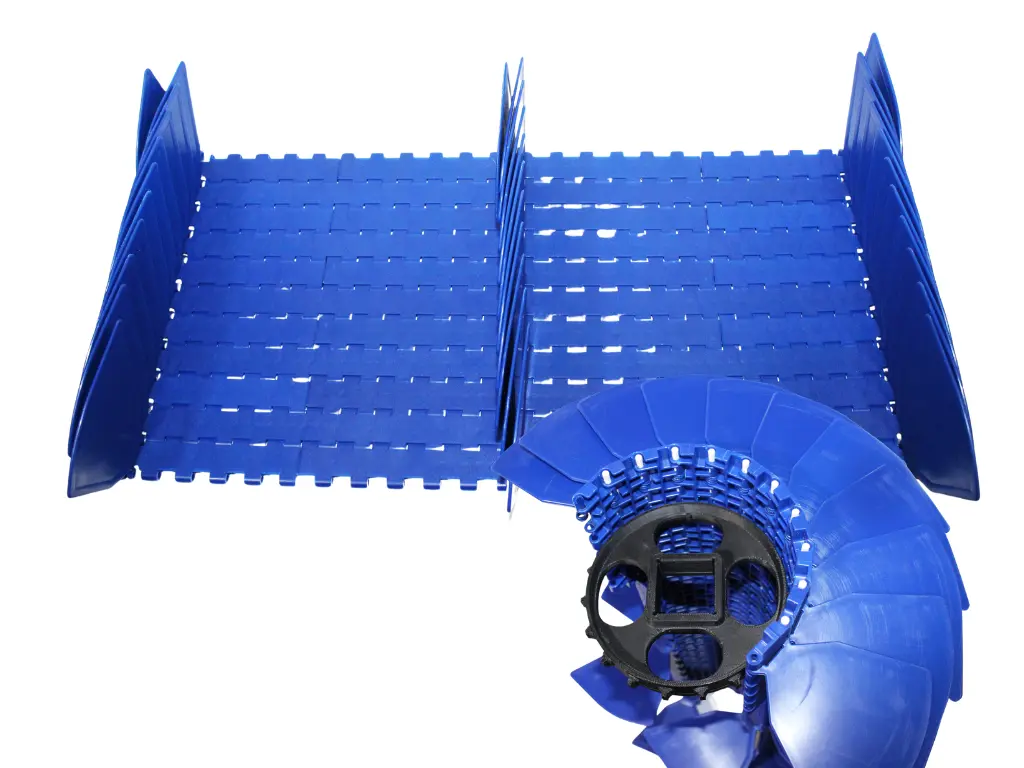

Sidewalls for MW25 & MW50 Plastic Modular Belt
- Available for MW25 and MW50 belt series in multiple heights and widths.
- Prevents product spillage and keeps items securely on the belt.
- Improves handling of bulk, irregular, or loose products.
- Durable, food-grade material designed to flex with belt movement.
- Easy to install and replace thanks to modular clip-on design.
- Supports cleaner, more controlled conveying with reduced waste.
